The Complete Guide to Channel Letter Types

If you walk down any commercial strip after dark, you are surrounded by channel letters.

They spell out retail store names, anchor corporate headquarters, and illuminate shopping center facades.

A series of custom illuminated face-lit and halo-lit channel letters on a commercial building facade.

To the average passerby, a glowing letter is just a glowing letter. But to a sign fabricator, architect, or property manager, the specific type of channel letter chosen determines everything: total fabrication cost, electrical draw, mounting complexity, local zoning approval, and night-time brand impact.

Whether you are designing a sleek boutique storefront or specifying signage for an entire commercial plaza, here is the ultimate guide to every channel letter type manufactured today.

The Big Four: Core Channel Letter Styles Explained

While customization options are infinite, every commercial channel letter falls into four primary fabrication and illumination categories:

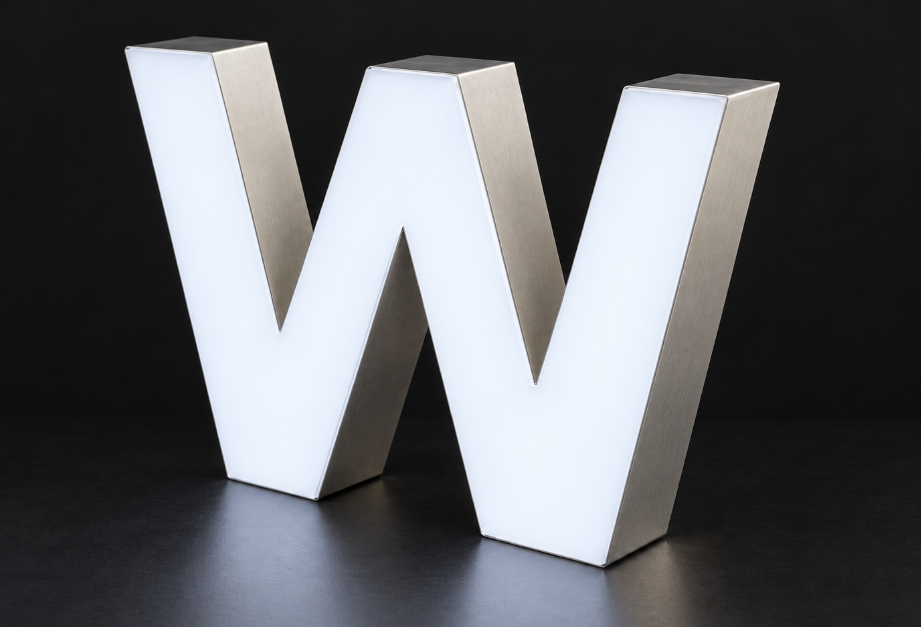

1. Front-Lit (Standard Face-Lit)

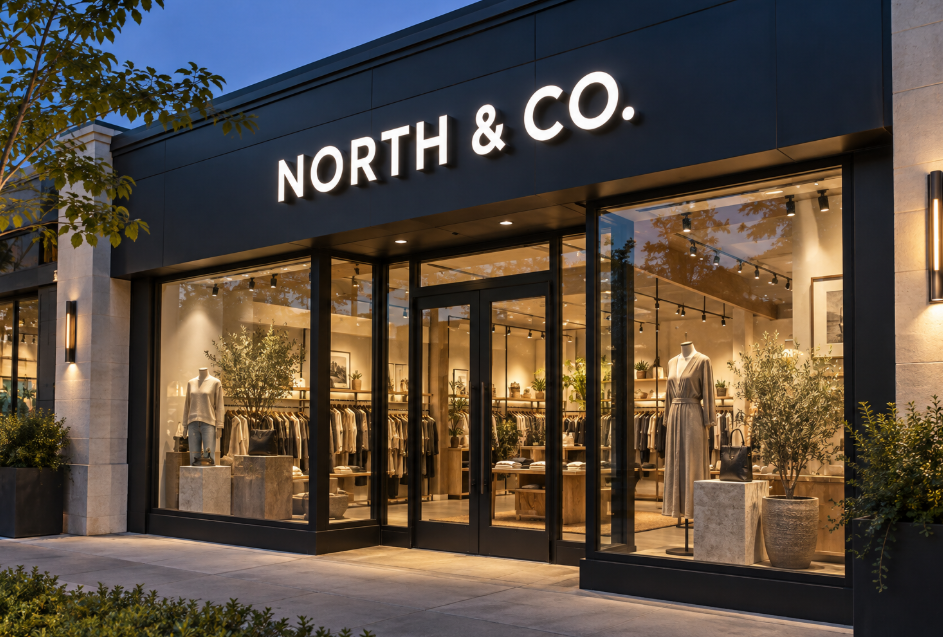

Illuminated white channel letters enhance a modern retail storefront, creating a clean, elegant look with excellent nighttime visibility. Visual by Let’s Talk Signs.

• How It Works: The back and sides (returns) of the letter are formed from opaque sheet metal. The face is acrylic, held in place by a plastic border called trim cap.
• Best For: Strip malls, big-box retail stores, restaurants, and high-traffic commercial plazas where maximum legibility from a distance is required.
• Pro Tip: Pair white internal LEDs with colored acrylic faces for the punchiest nighttime visibility.

2. Reverse-Lit (Halo-Lit / Back-Lit)

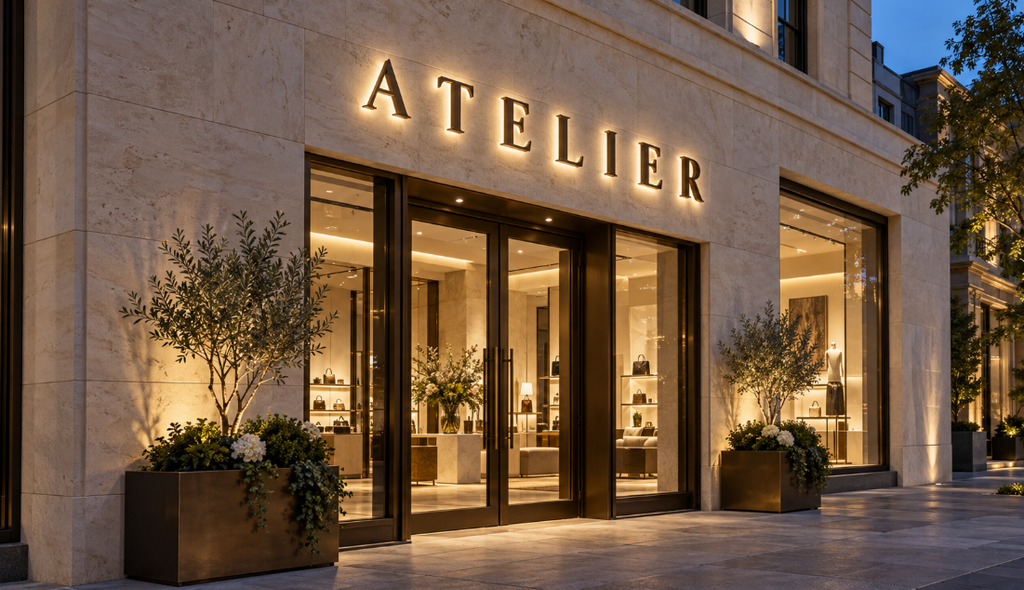

Elegant halo-illuminated letters create a warm, sophisticated glow against a natural stone storefront, enhancing its luxury appeal. Visual by Let’s Talk Signs.

• How It Works: The front face and side returns are constructed entirely from opaque aluminum. The back of the letter is clear polycarbonate. The letter is mounted 1.5 to 2 inches off the wall on standoffs.
• Best For: High-end boutique hotels, law firms, medical centers, and upscale shopping centers with strict landlord sign criteria.
• Pro Tip: If mounting onto textured brick or stone, specify an acrylic backer plate to keep the halo glow even and crisp.

3. Combination (Dual-Lit / Front & Back Lit)

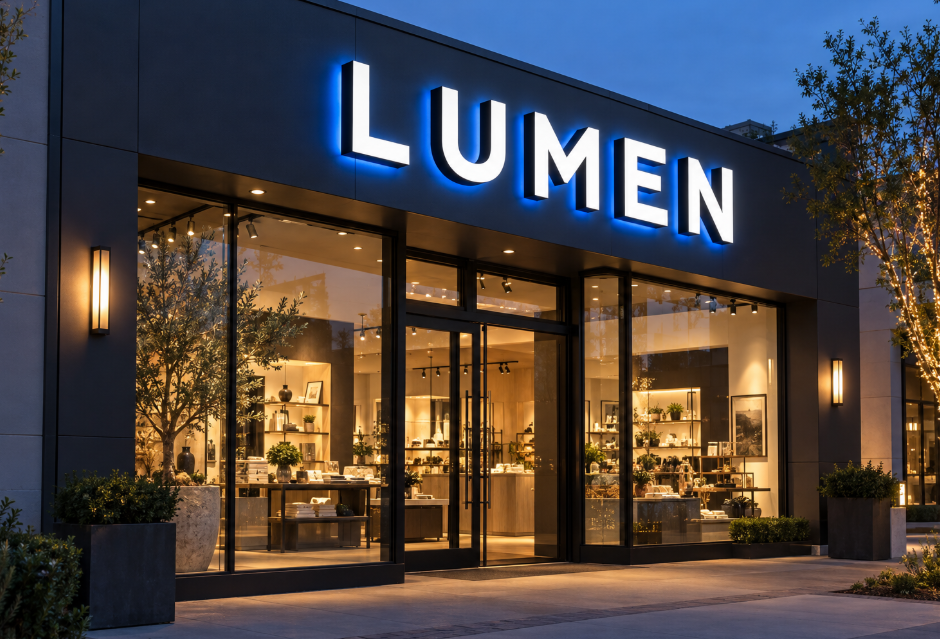

Dual-illuminated channel letters combine bright white faces with a striking blue halo glow, creating a bold, modern storefront appearance. Visual by Let’s Talk Signs.

• How It Works: Incorporates translucent acrylic on the front face and clear acrylic on the back.
• Best For: Flagship corporate stores wanting an unforgettable, high-contrast look (e.g., glowing white forward with a warm amber halo behind).

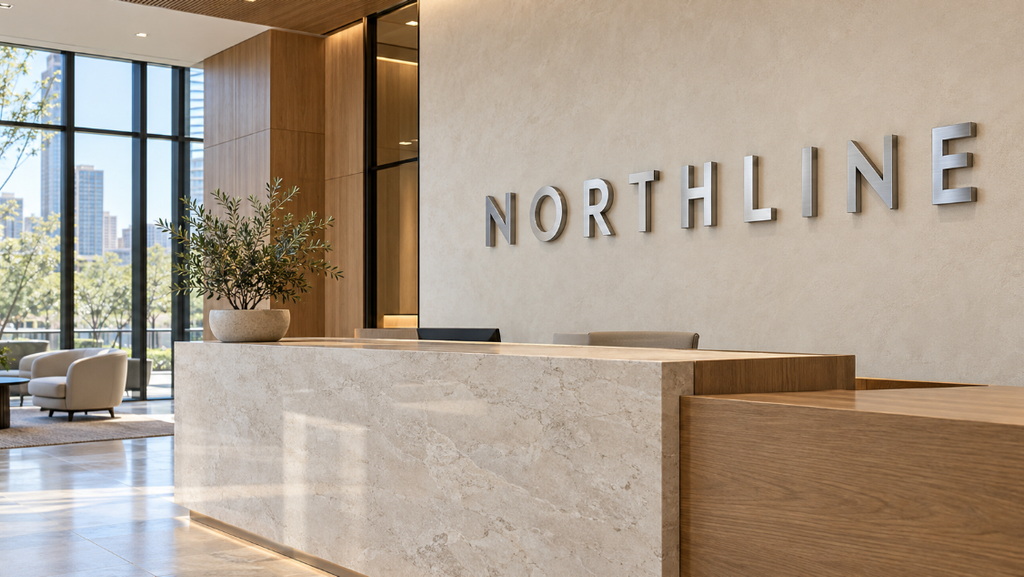

4. Non-Illuminated (Dimensional) Letters

• How It Works: Fabricated with zero internal electrical components or LEDs. Crafted from solid aluminum, brass, or painted metals, relying on exterior sunlight by day and architectural spotlighting by night.
• Best For: Interior corporate lobbies, historic districts with strict lighting bans, or buildings where electrical permits are prohibitive.

Special Fabrication Variants You Need to Know

Beyond the core lighting profiles, fabricators use specialized material techniques to create distinct letter styles:

1. Trimless (Flush-Face) Channel Letters

Standard front-lit letters use a visible 1-inch plastic trim cap around the edge of the letter face. Trimless letters eliminate this cap entirely. The acrylic face is precision-bonded directly to the metal return wall, creating an ultra-sleek, seamless edge favored by European luxury brands.

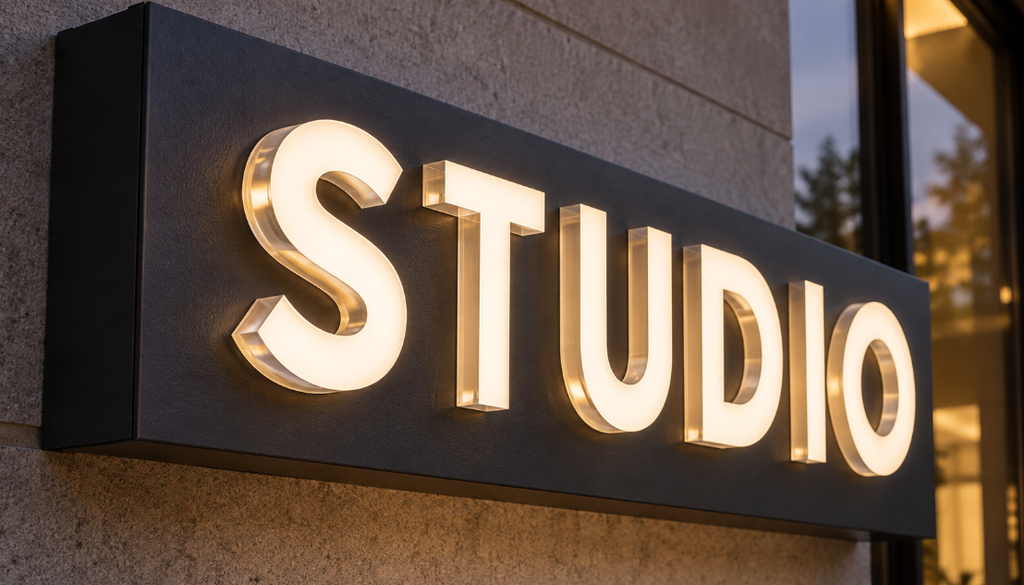

2. Push-Through Acrylic Letters

Instead of hollow letters, a solid aluminum sign cabinet is CNC-routed with letter shapes. Thick solid acrylic characters (usually 1/2″ or 1″ thick) are pushed through the metal face from behind. Only the polished acrylic edges and faces catch internal LED light, giving an ultra-luxurious 3D glass effect.

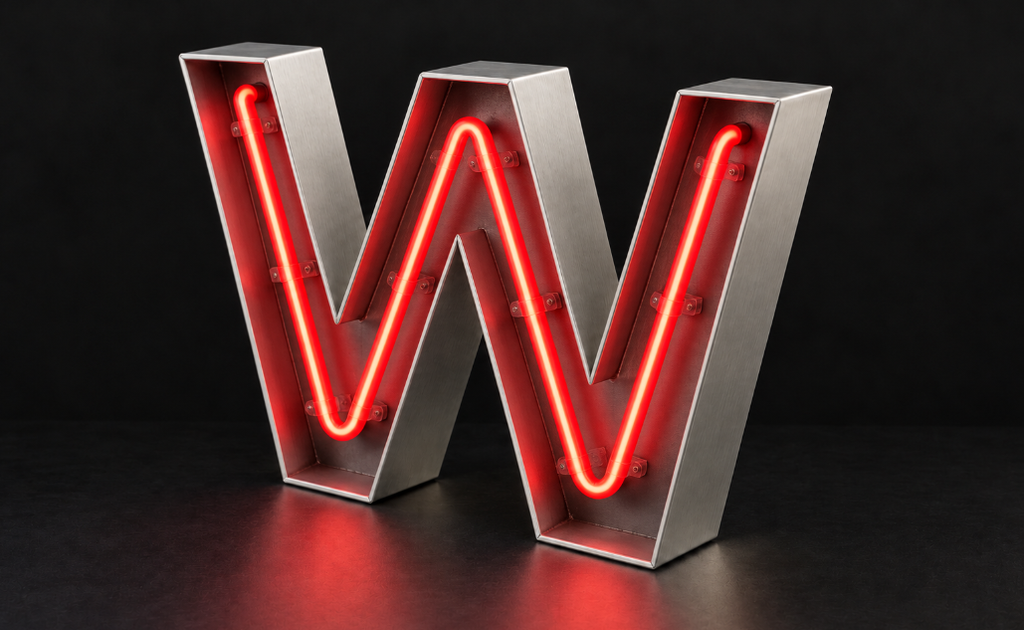

3. Open-Face Channel Letters

The aluminum letter can is fabricated with deep side returns (3 to 5 inches), but the front acrylic face is left open, exposing custom bent glass neon tubing or vintage LED flex directly inside the pan.

The Bottom Line

Choosing the right channel letter profile isn't just an aesthetic decision it's a balance of brand identity, local city sign codes, and landlord requirements.

Whether you opt for the raw brightness of front-lit acrylic or the subtle elegance of a halo wash, understanding these fabrication profiles ensures your sign looks as impressive on the wall as it did on the blueprint.
